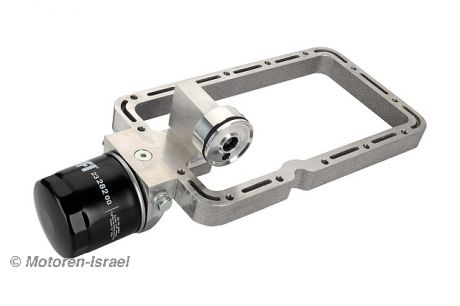

Oil pan intermediate ring 25 mm with external oil filter

Oil pan intermediate ring 25 mm with external oil filter and pressure control valve

Ideal for bikes equipped with sidecars, race bikes with raised engines and bikes with full fairings.
The external filter has a length of 7.5 cm.

And now NEW: also with an external filter with only 5 cm length. (Please select above.)

Includes oil cooler connections to the front.

Advantages:

• Oil volume increased by 1 litre
• approx. 10 – 15 degree reduction of the oil temperature because the filter is surrounded by cooling air

• enhanced filtering capabilities of cartridge filter
• straightforward filter change

Here you will find an assembly instruction as a pdf file.


If you have an engine with an oil cooler, you will need the oil filter cover no. 114100 and the short oil tube no. 114101 too.

This oil spacer has a pressure control valve!

The delivery includes the necessary screws, the spacer for the intake bell with the seals and the oil filter.

Two oil pan gaskets are still needed, art.-no. 111894!

Frequently asked questions about dimensions or pressure control valve are answered here .

Fits all 2V Boxer /5, /6, /7, R and 248 models,
R45/65, R50/5, R60/5, R75/5, R60/6, R75/6, R90/6, R90S, R60/7, R75/7, R80/7, R100/7, R100S, R100RS, R100RT, R100CS, R80G/S, R80ST, R80RT, R80GS, R100GS, R100PD, R100R, R80Basic

The fitting may lead to modification being required to the centre stand for certain models.

Bitte nehmen Sie unsere Hinweise 4 Belehrung gem. Altölverordnung zur Kenntnis.

If you already have an intermediate ring with a long external filter and want to convert to the short one, you will also need a new screw adapter, item no. 117023, in addition to the short external filter, item no. 117024.
